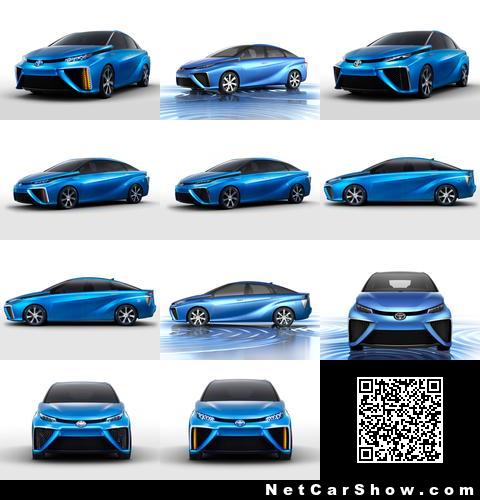

  • Toyota FCV Concept (2013)
    Go full-screen
  • Toyota FCV Concept (2013) - Side Profile
    Go full-screen
  • Toyota FCV Concept (2013) - Front
    Go full-screen
  • Toyota FCV Concept (2013) - Rear
    Go full-screen

Toyota FCV Concept

The Toyota FCV Concept, revealed for the first time at the 2013 Tokyo Motor Show, previews the fuel cell vehicle Toyota plans to launch around 2015 as a pioneer in the development of hydrogen-powered vehicles.

Toyota's progressive refinement of hydrogen fuel cell technology has given the car a range of at least 300 miles (500km) on a full tank and a refuelling time of around three minutes - roughly the same as for a petrol or diesel vehicle.

The Toyota FCV Concept's exterior design expresses the key characteristics of a fuel cell vehicle: the transformation of air into water as the system produces electricity; and the powerful acceleration delivered by the electric drive motor. The front end features pronounced air intakes, while an air-to-water theme is captured in the flowing liquid profile of the doors, a wave motif on the filler cap and a rear-end treatment inspired by the stern of a catamaran.

The powertrain features Toyota's proprietary compact and lightweight fuel cell stack and a pair of high-pressure (70mPa) hydrogen tanks, located beneath the specially designed body. This compact packaging means the FCV can carry up to four occupants.

The Toyota FC stack has a 3kW/l power output density, which is more than twice that of the system previously used in the FCHV-adv concept, and a maximum power output of at least 100kW. It is also equipped with a high-efficiency boost converter. By increasing the voltage, Toyota has been able to make the motor smaller and reduce the number of fuel cells, leading to a system that is more compact overall, yet delivers better performance at reduced cost.

Driving aside, a fully fuelled vehicle can provide enough electricity - 10kW/h - to power an average Japanese family home for a week.

The Toyota FCV measures 4,870mm long, 1,810mm wide and 1,535mm high. The wheelbase is 2,780mm.
