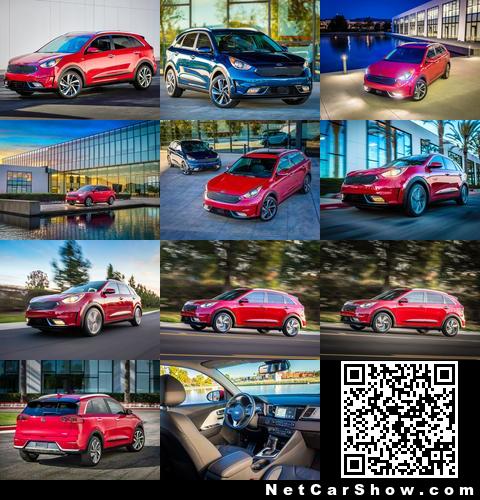

Kia Niro (2017)

In addition to spaciousness and comfort, ensuring a quiet interior environment was also a key development focus for engineers. Copious insulation in the Niro's front structure, optimized suspension bushing stiffness, careful body sealing, and application of expanding foam inside the A- and B-pillars all prevent road and tire noise from entering the cabin. Furthermore, acoustic windshield glass and carefully shaped side mirrors mitigate wind noise.

Engineers also worked hard to address the innate issues often associated with hybrid powertrains. To that end, they minimized system noise and vibration at the source with specially designed engine mounts, equal-length driveshafts, and even added a damper inside the steering wheel hub to minimize vibrations felt in the steering wheel. Other NVH measures include a special embossed foam in the floor (under the carpet), and a dense insulating pad underneath the hood also help to keep unwanted noise to a minimum.

Strong and Light Core

The platform underpinning the Kia Niro has been specifically engineered to accommodate the unique gasoline-electric hybrid powertrain, and with 53 percent of Advanced High Strength Steel (AHSS), including reinforcement in the A- and B-pillars as well as the roof rails, it is both a lightweight and durable structure. Extensive use of hot-stamped components and industrial joint adhesive increase torsional rigidity and structural integrity. As such, engineers are targeting the Niro to earn top honors from the National Highway Traffic Safety Administration (NHTSA) and Insurance Institute of Highway Safety (IIHS).

Weight reduction was a critical Kia Niro development aspect, and in addition to the body, AHSS was also used to engineer other elements, including novel lightweight seat frames. Further, engineers were able to bring down the overall weight by using aluminum for the hood, tailgate and several suspension elements including the front lower control arms, front and rear knuckles, and in the brake calipers. Even the parking brake pedal contributes to the weight savings through the use of fiber-reinforced plastic construction. Finally, the engineers eliminated the traditional 12-volt battery to reduce weight, instead, utilizing the high-voltage lithium-ion polymer battery.

Uniquely Engineered Hybrid Powertrain

Motivating the Kia Niro is a highly efficient and engaging powertrain starting with an all-new, state-of-the-art Kappa 1.6-liter GDI four-cylinder engine, engineered specifically for hybrid applications. Making 103 horsepower, the new engine marks the first combination of the Atkinson Cycle, cooled exhaust gas recirculation (EGR), GDI and a long-stroke-narrow-bore specification to maximize efficiency2. Efficiency and emissions are further improved via the Niro's exhaust heat recovery system, which speeds engine warm-up by routing coolant to a heat exchanger in the exhaust system. A 43-hp tractive motor, known as the transmission-mounted electric device (TMED), works in tandem with the gasoline engine to produce a robust 146 horsepower and 195 lb.-ft. of torque.

That power is transmitted through a newly developed, second-generation six-speed dual-clutch transmission (DCT), which not only boosts efficiency but is also a key factor to the Niro's great driving experience. The transmission delivers smooth, quick shifts for a natural and spirited feel in stark contrast to that of other hybrids equipped with continuously variable transmissions. Bringing the whole system together is a compact and lightweight 1.56-kWh Lithium Ion Polymer battery located underneath the rear seat. Because the high-voltage battery is both power and energy dense, engineers were able to use the downsized gasoline engine to maximize fuel economy and reduce emissions.

With its unique combination of the lightweight TMED, proven GDI and Atkinson Cycle technology in the internal combustion engine, along with the DCT providing a dynamic driving experience, the Niro offers enjoyment and efficiency all in one, targeting a combined fuel efficiency rating of 50 mpg.

Driving Fun

The Niro's parallel and simplified hybrid system creates seamless transitions of power delivered to the front wheels, resulting in a very un-hybrid-like driving experience. The hybrid system is neither intrusive nor obvious. The Niro accelerates quickly off the line and continues its smooth power delivery, inspiring driver confidence in everyday driving maneuvers like merging onto the highway.

Special attention was also paid to brake feel. Applying lessons learned through development of two generations of Optima Hybrids as well as the fully electric Soul EV, Kia engineers designed the Niro's regenerative system to seamlessly blend in hydraulic friction braking. Consequently, deceleration feels more consistent and linear than other hybrids.

Advanced Hybrid Tech

Like the rest of Kia's lineup, the Niro will be offered with a suite of advanced driver assistance and convenience technologies. Familiar features that will be available on the HUV include Blind Spot Detection with Rear Cross Traffic Alert and Lane Change Assist; Advanced Smart Cruise Control; Lane Departure Warning; and Autonomous Emergency Braking.

All-new Eco-DAS (Driver Assistance System) features Kia's first application of Coasting Guide and Predictive Energy Control. The Coasting Guide aims at maximizing fuel economy by essentially coaching the driver on when to coast and brake. Predictive Energy Control, meanwhile, uses the navigation system and cruise control to anticipate topographical changes on the road ahead and actively manage energy flow, seamlessly determining when its best to recharge the battery and when its best to expend stored energy to optimize overall efficiency. Similar systems have been seen on German luxury makes, but Kia's system is the first in the industry to monitor and adjust for both ascending and descending scenarios. Other notable features include Smart Air Intake, which reduces drag by carefully managing the intake of outside air for the HVAC system, and also an accompanying Auto Defog system that prevents condensation from building on the glass by monitoring cabin air conditions to manage the cycling of the A/C compressor.

Kia's award-winning infotainment and telematics system aims to keep Niro drivers connected at all times, with the newest version, UVO3, trickling down from the all-new 2017 Sportage. Complete with Android Auto™, Apple CarPlay®, and UVO eServices featuring 14 telematics services, the enhanced system features up to 8 GB of music storage, access to onscreen apps such as Pandora® and Soundhound and Wi-Fi tethering capability. All this is displayed on a 7-inch capacitive touch screen.
