Acura NS-X Concept (1989)

Acura NS-X Concept

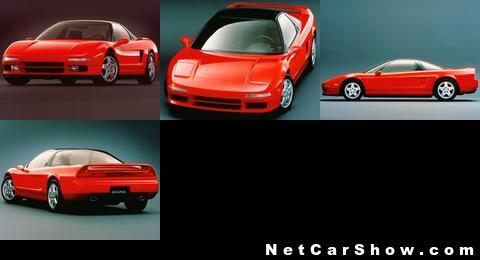

The prototype NS-X Concept introduced at the Drake Hotel in Chicago in February 1989 was shorter overall than the final production vehicle with a shorter wheelbase and less front and rear overhang. The evolution of the design from prototype to production would be impacted by a late change to the engine specification - from the prototype's SOHC V6, shared with the Acura Legend sedan, to the production NSX's bespoke DOHC V6 with VTEC valvetrain.

Prior to the press conference, the president of Honda Motor Co., Ltd., Tadashi Kume, unexpectedly decided to fire up the prototype's engine, a sound that could be heard in an adjacent room, where a competing automaker was holding its own press preview. While the noisy blast attracted media attention, Kume turned to the NSX engineering team and asked why the NS-X Concept didn't use the new VTEC technology that had been recently developed at R&D. When told that it was only planned for a 4-cylinder engine application, Kume pushed the team for a VTEC V6 design.

The engineering team received similar input from a group of top enthusiast automotive journalists attending a "super long lead" driving event at Honda's Tochigi R&D Center, prior to the prototype's 1989 Chicago Auto Show debut. These included top testers from Car and Driver, Motor Trend and Road & Track. The reactions were generally very positive; however, there was also a feeling that the NSX could use more power.

Ultimately, the DOHC VTEC cylinder head was wider than the head on the prototype's SOHC engine, with significant implications to the production NSX body. The wider engine resulted in a slightly longer wheelbase, along with increased front and rear overhang for the production NSX. All of these changes occurred rapidly, resulting in the longer production model.
