Koenigsegg CCXR Edition

The Koenigsegg Edition has been created to break records in the traditional Koenigsegg way. The aim with the Koenigsegg CCXR Edition is to deliver superior performance - on the track, in a straight line and on country roads - and to do so in style and comfort.

According to our comparative studies, no other supercar can match the Koenigsegg CCXR Edition in terms of power-to-weight ratio, aerodynamic balance, downforce and chassis stiffness. At the same time, the Edition maintains the Koenigsegg CCX's fantastic drivability and its ability to absorb uneven road surfaces like no other supercar.

Both models are fitted with a remapped, 4.8 litre twin-supercharged Koenigsegg engine, and have been track-tuned by the inclusion of modified shock absorbers, stiffer springs and anti-roll bars, reset dampers and a lowered chassis.

Downforce has been enhanced by the addition of an optimised rear wing, front winglets, a larger front splitter and nolder, all of which have been designed to create as much downforce as possible. In total the Koenigsegg CCXR Edition produces over 350 kg of downforce at 250 km/h. The aerodynamics have been verified and optimized, both in CFD and during live testing on the Koenigsegg test track in Sweden and on various proving grounds in Europe.

The clean, Scandinavian design is accentuated by the clear lacquered finish, which reveals the bold, linear beauty of the carbon fibre construction. Each individual section of carbon fibre bodywork has been painstakingly matched and then joined together inside out like a tailored suit, to create a stunning pinstripe effect. The process is so timeconsuming that it takes almost twice as much time to create the clear-coated visible carbon body compared to the normal painted carbon CCX body.

2008 Koenigsegg CCXR Edition

The exquisite leather interior, specially anodised aluminium trim and redesigned Koenigsegg Chronocluster and centre console combine with our unique forged aluminium wheel design to confirm the Edition's exclusive status. Standing beside the car, you would be forgiven for thinking it is already in motion - such is the dynamic presence of this breathtakingly stunning vehicle. The looks can be further enhanced by adding optional secondary colours for the front splitter, side splitters and diffuser, with a choice of dark red, dark silver and pearl white.

The Koenigsegg CCXR Edition comes with the free option of Michelin Cup Tyres, and a unique set of wheels designed to optimise their size and characteristics. These state-of-the-art tyres reduce braking distance, deliver faster acceleration from standstill and higher cornering G-force in dry conditions.

The Koenigsegg CCX Edition runs on regular petrol and produces 888 bhp, whilst the Koenigsegg CCXR Edition has been modified as a bioflexfuel car, and can run on E85, E100, regular 98 octane petrol (Europe) or a mixture of the three. When run solely on petrol, the engine produces 888 bhp, but the higher octane E85 fuel makes higher compression, boost pressure and increased spark advance possible, enabling the engine to deliver a staggering 1018 bhp.

For the first time we can offer paddle-shift as an option for the Edition cars. In fact all manual Koenigsegg cars can now be altered to paddle-shift at a later stage, if so desired by the customer. Production of the cars will be strictly limited: just 14 of the Koenigsegg CCX Edition and 6 of the Koenigsegg CCXR Edition will be made.

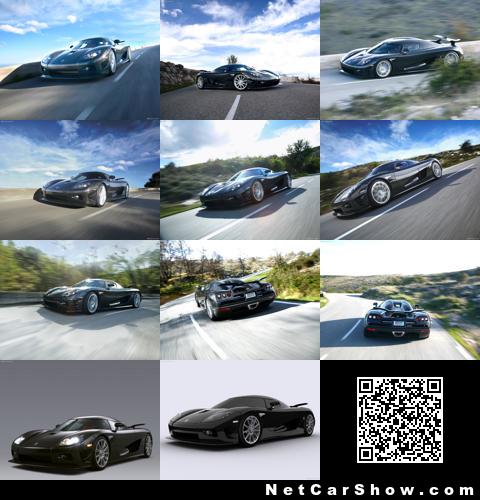

Photo credit: Carstudio.it & Stuart Collins

Technical Specifications (CCXR Edition | CCX Edition)

• Performance
  • Acceleration
    • 0-100 km/h (0-62 mph): 2.9 s | 3.0 s
    • 0-200 km/h: 8.75 s | 9.05 s
    • 0-200-0 km/h: 13.55 s | 13.85 s
    • 0-300-0 km/h: 27.8 s | nd
  • Top Speed: 400+ km/h (254+ mph) (without rear wing)
  • 100-0 km/h Braking distance: 32 m
  • Lateral G-force: 1.5 G
  • Fuel consumption
    • Highway: 18 l/100 km (E85 fuel) | 13 l/100km
    • Combined: 22 l/100km (E85) | 17 l/100km
  • Weight-to-power ratio: 1.26 kg/hp | 1.44 kg/hp
  • Weight distribution: 45% front, 55% rear
• Aerodynamics
  • Cd. 0,36 Frontal area 1.867 m2
  • Total Downforce at 250 km/h: 350 kg
  • Flat underside of chassis. Venturi tunnels at rear of chassis/body.
• Chassis
  • Carbon fibre with aluminium honeycomb and integrated fuel tanks for optimal weight distribution and safety.
  • Monocoque torsional rigidity: 58,000 nm/degree.
  • Weight including tanks: 72 kg.
  • Front and rear suspension: Double wishbones, two-way adjustable VPS gas-hydraulic shock absorbers, pushrod operated. Electronically adjustable ride height.
  • Front: Cro-Mo subframe, with integrated crash members.
  • Rear: Semi-stressed engine and gearbox with support struts, for optimal rigidity and no engine inertia movements.
  • Fully machined aircraft aluminium uprights, with SKF LeMans specification 150mm angle contact ball bearings. GKN hollow/gun-drilled driveshafts. Koenigsegg Z-style progressive and lightweight anti-roll bars front and rear.
• Engine
  • Koenigsegg aluminium V8, 4 valves per cylinder, double overhead camshafts.
  • Displacement: 4800 cc
  • Compression: 9.2:1 | 8.6:1
  • Sequential, multipoint fuel injection
  • Twin Rotrex centrifugal superchargers with response system
  • Dry sump lubrication with oil spray piston cooling
  • Boost pressure: 1.6 bar | 1.4 bar
  • Power output: 1018 bhp @ 7000 rpm | 888 bhp @ 7000 rpm
  • Maximum torque: 1080 Nm (796 ft/lb) @ 5600 rpm | 940 Nm (693 ft/lb) @ 5800 rpm
  • Carbon fibre intake manifold with optimised intake tracts.
  • Patented response charge system for optimal engine response.
  • Tig-welded ceramic-coated stainless steel exhaust manifold with merge collector.
  • Emission levels: Euro IV
  • Weight: 178 kg
• Transmission
  • Specially developed transversal 6-speed gearbox, with optional paddle-shift.
  • Torque sensitive limited slip differential.
  • Clutch: Dual Plate, Ø 240 mm. (in paddle-shift version without Clutch pedal)
  • Final ratio: 3,364
    • 1st gear: 2,875
    • 2nd gear: 1,773
    • 3rd gear: 1,267
    • 4th gear: 1,000
    • 5th gear: 0,833
    • 6th gear: 0,711
    • Reverse gear: 3,000
• Steering
  • Rack and pinion power-assisted steering. 2.7 turns lock-to-lock.
  • Turning circle: 11 metres. TRW electro-hydraulic power-assisted.
• Brakes
  • Front brakes: Ventilated ceramic discs Ø 380 mm, 34 mm wide. 8-piston light alloy Brembo monoblock calipers. Powerassisted.
  • Rear brakes: Ventilated ceramic discs Ø 362 mm, 32 mm wide. 6-piston light alloy AP Racing callipers. Power-assisted.
• Traction Control
  • F1-style for optimal performance with 5 different handling modes.
• Wheels
  • Koenigsegg forged alloy wheels with centre locking
  • Front: 19" x 9.5"
  • Rear: 20" x 12.5"
• Tyres
  • Michelin Pilot Sport 2 (or Cup tires)
  • Unidirectional with asymmetric tread pattern
  • Front: 255/35 - 19" (Y)
  • Rear: 335/30 - 20" (Y)
• Body
  • Two-door, two seater with removable hardtop stowable under the front hood lid. Body made from pre-impregnated carbon fibre/kevlar and lightweight sandwich reinforcements.
• Electrical System
  • Solid state digital semiconductors - no fuses or relays. Can bus operated and fully programmable functionality.
• Equipment
  • Visible carbon body, dual airbags, Edition rear wing, winglets, large front splitter, detachable storable hardtop with glass roof, power windows, adjustable pedals and steering column, adjustable seats in rake and length, carbon ceramic brakes with ABS, hydraulic lifting system, power steering, power brakes, satnav, rear camera, DVD, CD, I-pod connection, sat radio, climate control, digital warning and info system, G sensor, alarm, tyre monitoring system, silver key, leather carpets, roof stowage bag, car cover, forged aluminium wheels, Chrono instrument cluster.
• Dimensions
  • Total length: 4293 mm (169")
  • Total width: 1996 mm (78.6")
  • Total height: 1114 mm (44")
  • Ground clearance: 100 mm (3.9") | Rear: 95 mm (3.74"), Front: 92 mm (3.62")
  • Fuel capacity: 70 litres (18.5 US gallons)
  • Luggage compartment: 120 litres (31.7 US gallons)
  • Dry weight: 1280 kg (2821 lbs)
